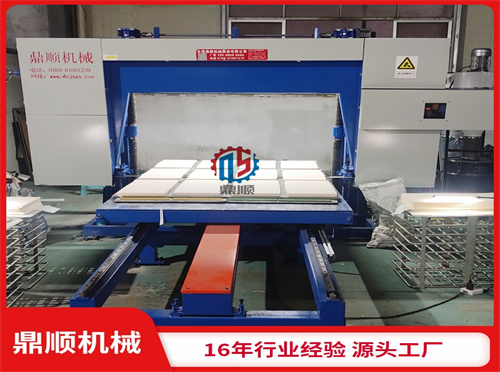

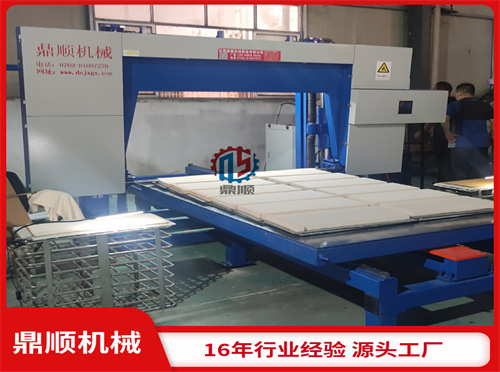

This cutting foam machine adopts the advanced improted timing controlled techniques.It's used for the reciprocating action for flatly slicing of long foam.Fully automatism number controlled.It's operation is handy and cutting is exact,this machine can also be supplied with a pressure roller.(this machine can choose touch screen)
|
1650型 |
2150型 |
||
|
Cutting Foam Size: 有效切割泡绵尺寸: |
W1650mm*L2000mm |
Cutting Foam Size: 有效切割泡绵尺寸: |
W2150mm*L3000mm |
|
Cutting Foam Height: |
H1200mm |
Cutting Foam Height: 有效切割泡绵高度: |
H1200mm |
|
Cutting Thickness: 切割厚度: |
2mm Up 2mm 以上 |
Cutting Thickness: 切割厚度: |
2mm Up 2mm 以上 |
|
Cutting Speed: 切割速度: |
0～30m/min(Adjustable) 0～30m/分钟(可调) |
Cutting Speed: 切割速度: |
0～30m/min(Adjustable) 0～30m/分钟(可调) |
|
Blade Length: 刀带长度: |
L9160mm*W30mm*T0.45mm |
Blade Length: 刀带长度: |
L10160mm*W30mm*T0.45mm |
|
Cutting Type: 切割方式: |
Automatic & With Press- Roller 全自动控制 & 加压辊 |
Cutting Type: 切割方式: |
Automatic & With Press- Roller 全自动控制 & 加压辊 |
|
Machine N.W.: 机器净重: |
2100kg |
Machine N.W: 机器净重: |
2300kg |
|
Total Motor Power: 电机总功率: |
8.5kw |
Total Motor Power: 电机总功率: |
8.5kw |
|
Floor Space: 占地尺寸: |
L5800*W3600*H2500mm |
Floor Space: 占地尺寸: |
L7800*W4500*H2500mm |
